Locating / Seating Elements

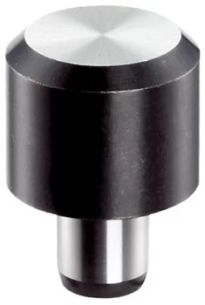

Locating and Seating Elements (locating pins / seating pins)

Locating elements and seating elements are components for positioning and supporting workpieces. These are often referred to as positioning elements or positioning feet. They are used, for example, in workpiece clamping technology as support, pin or stop. Seating pins are also used as feet for machines and devices.

The extensive product range includes various seating elements (seating pins, grippers, hard metal inserts)

• plain, spherical and ribbed bearing surface
• hard metal bearing surface ribbed or pointed
• for locating hole
• female thread / male thread (with threaded shank)
• height adjustable for fine adjustment
• orienting

and locating pins

• versions according to standard DIN 6321
• cylindrical / flat-faced
• with ball end
• with bore hole

from stock.

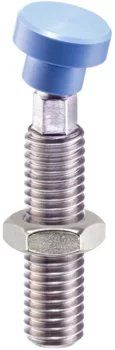

New in the range are seating elements and pins with plastic bearing surface made of PEEK.
