Analogue Level Measurement

Engler offers a wide range of analogue level measurement devices that provide accurate and reliable continuous measurement of filling levels. These devices utilize a transducer that converts signals into an analogue output signal of either 4-20mA or 0-10V. One of the most popular level measurement devices by Engler is the Reed Chain, which offers various models and designs up to 3000mm length, making it suitable for different tank sizes. This level measurement device has a proven operating principle and is easy to install, making it a cost-effective solution. Additionally, the Reed Chain is maintenance-free and can be used in almost all kinds of liquids. It can be combined with a temperature sensor and further analogue output, making it a versatile solution for many industrial applications.

• Analogue level measurement reed chain stainless steel
• Analogue level measurement reed chain plastics
• Analogue level measurement reed chain brass
• Analogue level measurement magnetostrictive NAMW
• Analogue level measurement magnetostrictive FSMB

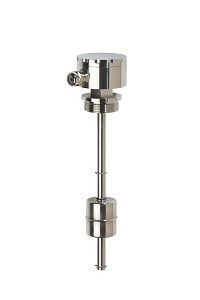

Analogue level measurement device made of stainless steel with a reed chainis suitable for high operating temperatures and can be used at higher operating pressures. The device comes with a variety of models and designs and can be customized based on individual needs such as connection, mounting, material, and function. The device works on the reed chain measurement principle and has a signal output of 4-20mA, 0-10V, or potentiometer. It is also available in EX protected models or designs and can have a temperature sensor upon request. The device is applicable in almost all kinds of fluids and can be used in various industries such as shipbuilding, off-shore, petrochemical and chemical sector, plant engineering, mechanical engineering, hydraulic power packs, cooling systems, potable water treatment, food- and beverage industry, power plants, and other power systems.

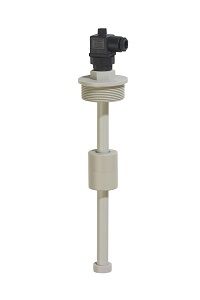

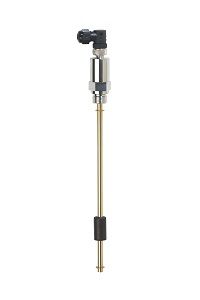

The plastic and brass analogue level measurement device with the reed chain measurement principle provides 2.5mm, 5mm, or 10mm resolution. The sliding tube is made of plastic and is available in a wide range of models and designs. Engler offers individual solutions concerning connection, mounting, material, and function for these devices. They provide a 4-20mA, 0-10V, or potentiometer signal output and can be equipped with a temperature sensor upon request.

If you are looking for a high-precision and continuous level measurement solution for your application, consider the magnetostrictive level measurement offered by Engler. This float controlled sensor features a magnetostrictive sensor and measuring transducer in the connector housing, providing up to 0.1% accuracy and a very high resolution of ≤0.5 mm. Engler's magnetostrictive level measurements offer numerous connection and mounting possibilities, making it possible to create customized solutions for your specific needs. In addition, the system features high linearity, with an analogue output of 0-10V or 4-20mA, and the option to measure temperature or interface layer. You can choose from various materials such as stainless steel, PP, or PVDF to ensure compatibility with your process. Trust Engler's magnetostrictive level measurement to provide precise and reliable level detection for your application.
